Standard and fully customized backplane solutions. Standard product portfolio includes CPCI, MicroTCA, ATCA, VME, VME64X, VXS and VPX architectures.

Standard Backplanes

VME

For Enquiry Contact Us

VME

Features :

  Conforms to VME64 specification (ANSI/VITA 1-1994)
  True 3U/6U eurocard height.
  Excellent crosstalk performance, low ground shift.
  Automatic daisy chain of BG/IACK signals (mechanical or electronic) On-board, passive termination.
  Latchable service header for system reset, AC fail & system fail signals (Contact us for connector details and      pinning).
  Power on via M4 screw / 6.35mm faston tab (busbars available on request for larger slot sizes).
  Extended tails with shrouds on all J2 connectors.
  Conductive surface area top and bottom (chassis GND) for EMC-tight seal between backplane and subrack.
  High frequency coupling capacitors (10nF, 200V) in each slot.

VME64
For Enquiry Contact Us

VME64

Features :

  Conforms to VME64x specification (ANSI/VITA 1.1-1997).
  Fits within a 6U Eurocard.
  Available in 01-21 slot widths.
  Surface mount, active termination.
  Electronic, on-board, automatic daisy chain (BG/IACK signals).
  Power connections via busbars (M6 screws) and power studs (M3).
  Decoupling capacitors in every slot.
  All P2 connectors long tail / gold-plated.
  With or without P0 connectors.

VPX
For Enquiry Contact Us

VPX

Features :

  Compliant to the latest VITA 46 and VITA 65 standards.
  Various slot widths.
  3U or 6U standard Eurocard formfactor.
  Hybrid versions available on High speed, multi-gig connector.
  High performance, low noise.

VXS
For Enquiry Contact Us

VXS

Features :

  Compliant to the latest VITA 41 Standards.
  Various slot widths.
  6U standard Eurocard formfactor.
  Hybrid versions available.
  High speed, multi-gig connector.
  High performance, low noise.

Compact PCI
For Enquiry Contact Us

Compact PCI

Features :
The below Backplane variants complying to Compact PCI specifications / standards are available:

  CompactPCI – Core (PICMG 2.0 Rev.3).
  Packet Switching (PICMG 2.16).
  Computer Telephoney (CT/H.110).
  CompactPCI Plus I/O (PICMG 2.3).
  CompactPCI Serial (PICMG cPCI-S.0).

For Enquiry Contact Us Brochure

3U 3Slot Open VPX Backplane 3U 3Slot Open VPX Backplane

3U 3Slot Open VPX Backplane

Open-VPX provides a versatile, high-speed architecture utilizing the rugged Eurocard form factor. There are backwards-compatibility options with VME/64x with hybrid backplanes.

As VITA 65 (VITA 65.0 and VITA 65.1) OpenVPX backplanes are based upon specific configuration profiles, many designs are customized. However, Rug-Rel offers the 3U VPX configuration as off-the-shelf. Other VPX derivations include VITA 46 (base VPX), VITA 66 for optical, and VITA 67 for RF.

Key Features :

  Compliant to VITA 46.0 baseline specification
  OPEN VITA 65 Specification
  Backplane Profile: BKP3-CEN03-15.2.9-n
  3 Slots VPX, 1 Payload Slot, 2 Peripheral Slot
  M3 studs power entry
  Reference clock
  Aux clock
  System Management Interface (I2CA, I2CB)
  Input current per backplane
VS1 = 28A, VS2 = 28A, VS3 = 30A

Board Specifications:

Architecture
Physical Dimensions Height: 3U Width: 80mm Thickness: 5.4mm
Layers 14 layers
Connectors MultiGig RT-2
Standards
VITA Type VITA 65 for Open VPX Type VITA 465 for VPX Base Specifications
Configuration
Power 3.3V, 3.3 AUX, 5V, 12V Options
Environmental Temparature Operating Temperature: -400 ~ +850 C Storage Temperature: -55°C ~ +90°C Basic Material: FR406 or equivalent PCB Traces: 2oz. power and ground standard Conformal Coating : Optional
Others
Warranty Two Years

Slot Profiles:

Slot 1: Payload Slot (SLT3-PAY-2F-14.2.7)

Slot 2: Peripheral Slot (SLT3-PER-1F-14.3.2)

Slot 3: Peripheral Slot (SLT3-PER-1F-14.3.2)

Backplane Topology:

Mechanical Drawings :

Pin Assignments :

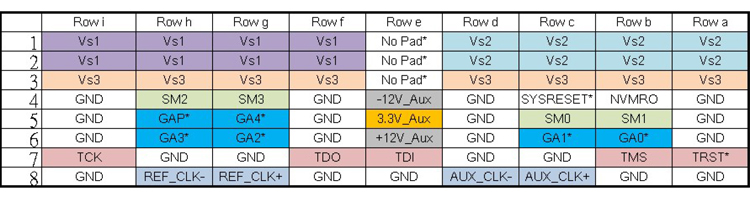

Utility Plane Signals on J0 VS1=12V , VS2=3.3V , VS3=5V

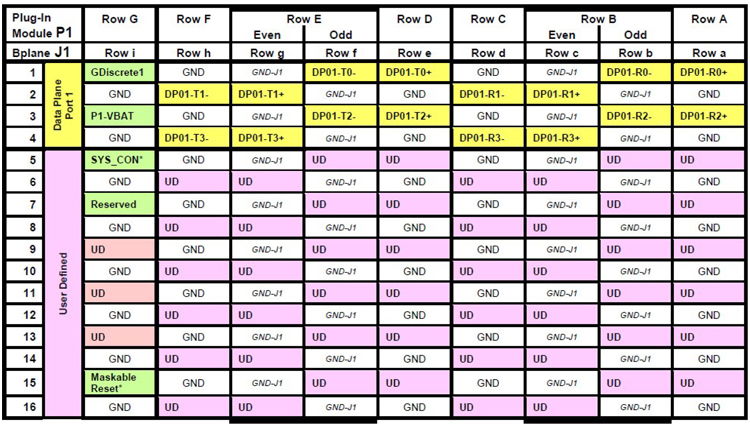

Payload Slot Profile SLT3-PAY-2F-14.2.7 — P1 & J1

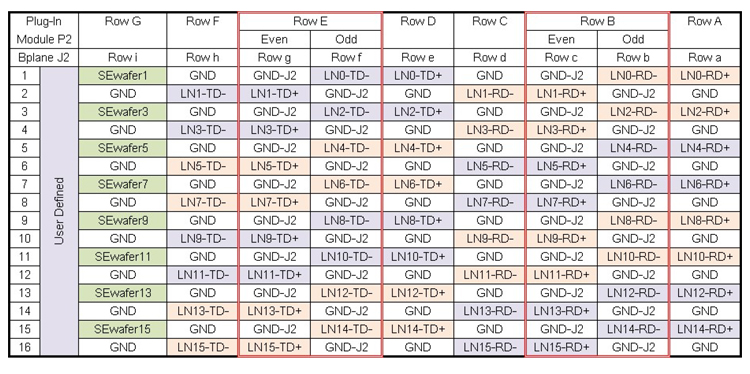

Payload Slot Profile SLT3-PAY-2F-14.2.7 — P2 & J2

Payload Slot Profile SLT3-PER-1F-14.3.2 — P1 & J1

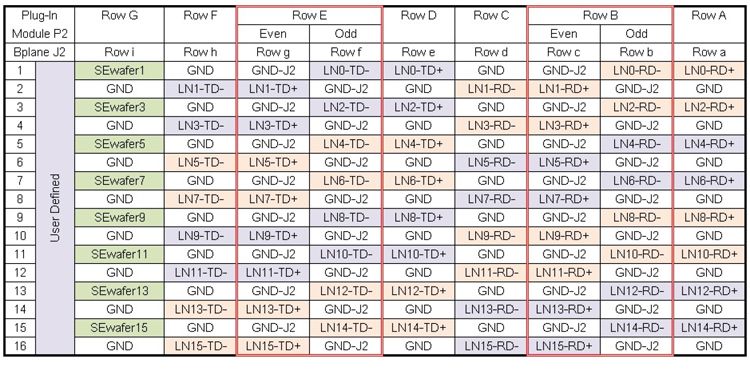

Payload Slot Profile SLT3-PER-1F-14.3.2 — P2 & J2

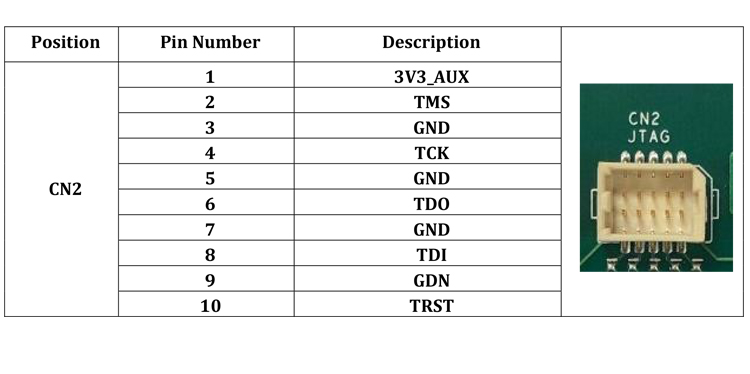

JTAG :

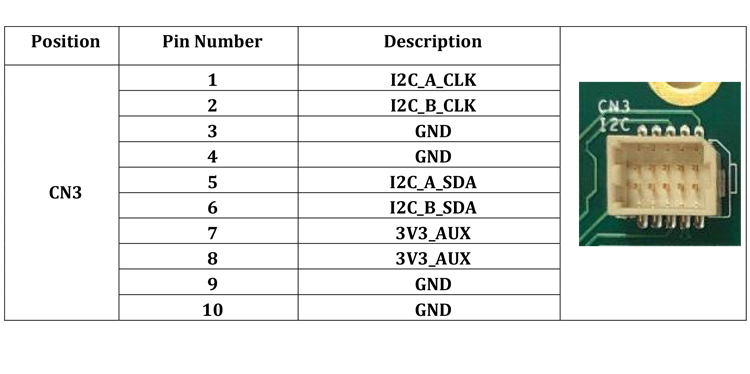

I2C Connector :

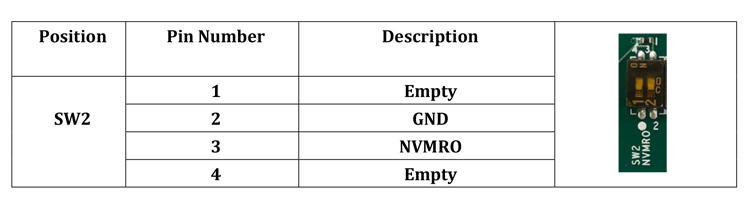

NVMRO :

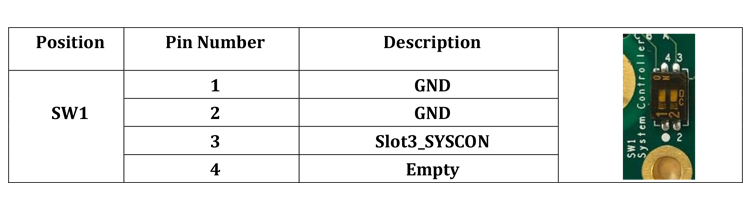

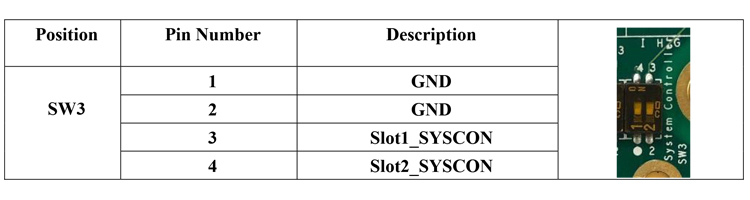

SYSCON :

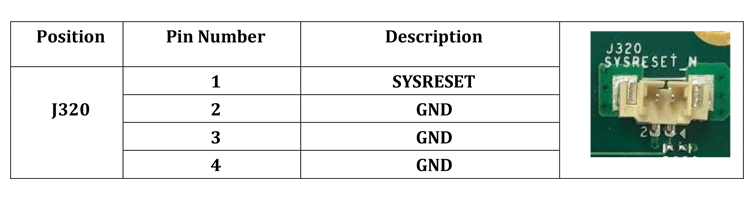

SYS RESET :

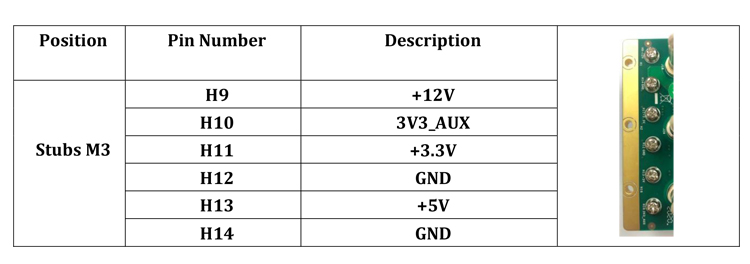

Power Stubs M3 :

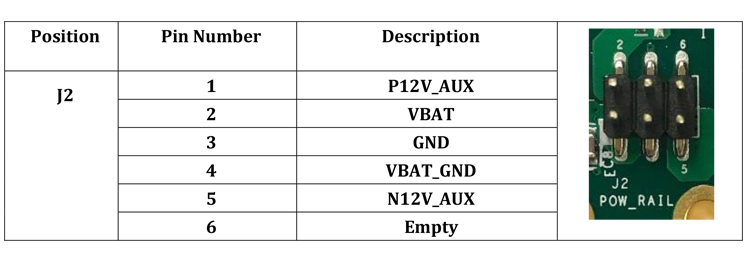

Power :

ORDERING INFORMATION:

Part Number Description
BPCB-0313-169 Open VPX 3U, 3-Slot Backplane
For Enquiry Contact Us Brochure

6U/7U VME64X

6U/7U VME64X

6U/7U VME64X

VME64x Extensions backplanes from rugrel are available in a 6U/7U Form factor,from 1 to 21 slots wide,and with or without po connectors.VME64x incorporates 5 row,160 way DIN connector which provides extra I/O and signal lines but also backward compatability with traditional VME bus system that use the 96way DIN interconnect.

Features :

  Meets or exceeds ANSI/VITA 1.1/1997,VME Extensions standards
  Fits within 6U Eurocards
  Available in 01-21 slots widths
  Surface mount,Active termination
  Electronic,On-board,automatic daisy-chain (BG/IACK Signals)
  Power connections via busbars(M6 Screws)and power studs(M3)
  decoupling capacitors in every slots
  All p2 connectors long tail/gold plated
  with or without po connectors
  Superior Power Distribution
  Virtually Zero crosstalk
  Backplane stiffners to provide durability,reliability
  Both standard and custom option Available

BOARD SPECIFICATIONS :

  8/10 layer board
  2 oz,copper power and ground
  PCB UL recognized 94V-0
  PCB FR-4 or equivalent
  PCB.125" thick
  Standard rear I/O
  Excellent signal integrity
  Superior power distribution
  Active/Passive bus termination
  +5,+3V3 and +12V Interface studs
  Operating Temparature:-40°c to -85°c
  Custom Hybrid Design Supported

MECHANICAL SPECIFICATIONS :

  6U/7U Height
  1,3,5,8,12,14,15 and 21 slots

DESCRIPTION:

The Rug-Rel VME64x backplane is designed to completely comply with the ANSI/VITA VME Extensions Standards. we have implemented all standard Features for VME64x compatability,including 160-pin VME extensions connectors in J1 AND J2,all defined ground pins Connected to a ground Plane,routing and termination of all VME and VME64x bussed signal lines,geographic adress pins,distributions of +5V,+3.3V,+/-12V,+/-V1,+-V2, and VPC all on a Single monolithic printed circuit board with J1 and J2 Included.

6U/7U backplane is an integrated backplane that include J1 and J2 backplane in one printed circuit Board.6U/7U backplane has continuous plane power plane.The power distibute performence is better than J1 and J2 backplane.for new system wii use J2 backplane.it is strongly recommended to use 6U/7U backplane,in addition,we have included active,electronic IACK/BUSGRANT daisy chainging standard;onboard,inboard termination;distributed high frequency capacitor for each slot,distributed low frequency capacitor;five signal layers,five power and ground planes.

Rug-Rel constructs the board in ten layers-five signal layers,five power and ground planes.we incorporate full strip line design,sufficiently distributed decoupling capacitors,inboard termination,2 oz power and ground planes,transient analysis simulation programm.we could use few layers,but we use this design to isolate each signal layer so our backplanes provide superior performance.

Our standard design Features three 2 oz. copper ground planes,that fully shield the backplane,minimize EMI/RFI emissions susceptibility,minimize crosstalk,and maximize power distribution.in addition,the robust outer ground layers provide mechanical EMI/RFI protection for the backplane.

Two 2.oz Copper VCC Planes,allow us to maximize power Distribution while they act as virtual ground planes for the signals in order to minimize noise and crosstalk.The high frequency decoupling capacitors at every slot and distributed low frequency electrolytic capacitors across the board also help this effort.

ORDERING INFORMATION:

Hi-Rel Part Number Description Height No Of Slots Connector Type Backplane Type
BPCB-0313-146 3 SLOT CUSTOMIZED VME64X 6U 5 160PIN J1/0/2
BPCB-0313-151 9 SLOTS VME64X+6 SLOTS VXS 6U 15 160PIN J1/0/2
BPCB-0313-199 7 SLOTS CUSTOMIZED VME64X 6U 7 160PIN J1/0/2
BPCB-0313-200 5 SLOTS STANDARD VME64X 6U 5 160PIN J1/0/2
BPCB-0313-201 8 SLOTS STANDARD VME64X 6U 8 160PIN J1/0/2
BPCB-0313-202 5 SLOTS STANDARD VME64X,2 RTM 6U 5 160PIN J1/0/2
BPCB-0313-204 5 SLOTS CUSTOMIZED VME64X,5 RTM 6U 5 160PIN J1/0/2
BPCB-0313-205 12 SLOTS STANDARD VME64X 6U 12 160PIN J1/0/2

Customized Backplanes

Our design expertise in the area of backplane technology and best in class facilities enables us in manufacturing broad range of customized interconnect products, providing great flexibility in the design of custom backplanes. The backplanes are carefully crafted & developed as per customer specifications.

Below are some of the Backplanes custom developed for our prestigious Indian defense customers.

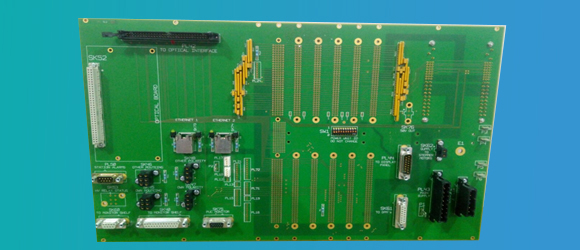

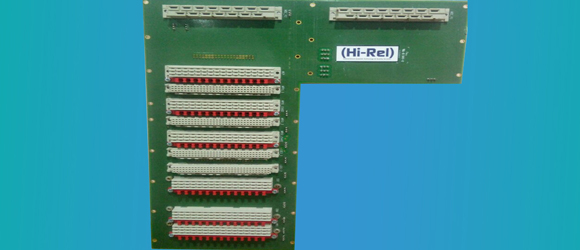

Customized 10 Slot Backplane

Customized 10 Slot Backplane

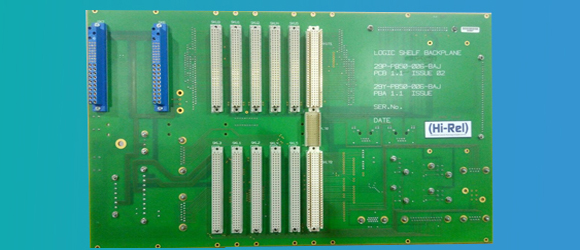

Customized 6 Slot Backplane

Customised 6Slot Backplane

Customized 6 Slot Backplane

Customised 6Slot Backplane
