Model: RM-0313-15

Contact Us

Download Brochure

Features

15", 1024 x 768 resolution, 1000 Nits
Compliant MIL-STD 810G/MIL-STD 461E
Front & Rear IP65
Rack mount mechanical design, supports VESA mount
Military-grade power connector (MIL-DTL-38999)
AC 230VAC optional DC 9-36V, ±10% ±10%
Convenient on-screen display controls
Video Input: 1 X HDMI, 1 X DP

Rug-Rel 7 Inch Rugged Panel PC

Contact Us

Download Brochure

INTRODUCTION & KEY FEATURES

The 7” Panel PC is a CE certified/IP65 proof front monitor solution, powered with an integrated State-of-the-Art em- bedded PC. Therefore, it is the perfect platform for highperformance visualiza- tion projects. Its robust but slim cover offers all options for integration and vari- ous applications. The PC is equipped with an industrial high-brightness display and is designed for long term availability.

Solid structure, 15mm Aluminum Rugged Frame rack-mounted for industrial & military application.
Easy mount touch screen (optional), tempered glass display surface box to avoid dust, waterproof, vibration resistant.
Suitable for large electromagnetic interference and low power con- sumption of industrial one-site human-machine interface, outdoor use, process control and other applications.
VGA input with cable length to 5M.
Can use air interface, hard steel materials, the panels look elegant and generous.
Low-E characteristics of LCD screen is not flashing, compared to the traditional CRT, can reduce the dim age to your eyes.

Specifications

SYSTEM SPECS	CPU	Intel Celeron Quad Core J1900, 2.0GHz, Up to 2.3GHz (Optional)
	Chipset	SoC Integrated, Intel HD Graphics 620 48% to 52% 15W low TDP
	Audio	Built USB Audio Card
	RAM	8GB
	ROM	128GB, Upgradeable
	OS Supported	Win7/10, WinCE, XP, Linux, Ubuntu
POWER	Input Power	+24V +12V,+5V,+5V VSB, PS-ON
POWER	Power Consumption	35 watts (Typical)
I/Os	Signal I/0	1x HDMI 4x USB 4x COM 2 x Gigabit LAN
	Audio	1x Audio Output (Optional)
	Rear Panel I/O	1x HDM Waterproof Connector 4x USB Waterproof Connector 4x RS232 1x DC D38999 Connector-3Pin
DISPLAY	Size	7”
	Aspect Ratio	16:10
	Resolution	1024 x 600(WQXGA)
	View Angle	L/R: 89/89 , U/D: 89/89
	Luminance	800 nits
	Contrast Ratio	1000:1 (min.)
	Response Time	TR6ms TF6ms
	Colors	8Bits-true 16.7M colors
	Video Format	Support PAL/NTSC/ASCEM etc.
	Port	VGA,USB, HDMI
	Horizontal Frequency	67.5KHZ
	Vertical Frequency	1QQ
SYSTEM FEATURES	Mounting	Embedded Mount, Panel Mount, Rack Mount & VESA Mount
	Material	Aluminum Alloy
	Weight	1.65 Kgs
	Dimensions	150x226x4Imm (HxWxD)
Environmental	Operating Temperature	30°C to +70°C
	Storage Temperature	-40°C to +80°C
	Operating Humidity	5% to 95% (Non Condensing)
	Ingress Protection	IP65
	Shock & Vibration	MIL-STD-810G Compliant
	EMI/EMC	MIL-STD-461F Compliant
	Altitude	6,000 meters
	Fire Resistance	UL-94HB
	Chemical Resistance	Active area of touch is resistant for acetone (Optional), toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal, oil and vinegar

Rug-Rel A600 17"Fanless Resistance Touch Pad

Contact Us

Download Brochure

Features

Die cast aluminium alloy moulding, fanless design
Onboard Intel Whiskey Lake U Series Processor
Supports 9V ~ 36V wide voltage input and TPM2.0 security encryption
Support 2*RS232/422/485 COM, 6*COM Optional
Support GPS, Glonass for more accurate positioning
Support 2*Intel lans, 4*Intel lans Optional

IP65 full flat front panel

Applied OS

SPECIFICATIONS

Model	A600
Color	Titanium Gray (color can be customized)
Material	Aluminum alloy chassis
Processor	Onboard Intel Celeron 4205U(Dual core dual threads, 1.8Ghz, 2MB Cache) Onboard Intel Core i5-8265U(Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache) Onboard Intel Core i7-8565U(Quad core eight threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache)
RAM	Support 1*DDR4 2133/2400 SODIMM Memory Slot, Max. Support 32GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel UHD Graphics
Display Port	1HDMI, 1LVDS(Support synchronous and asynchronous dual display)
Storage	Onboard 1M.2 2280 slot (SATA Protocol), 12.5" HDD,Support RAID 0/1
Expansion Slot	Support 1*Mini PCIE slot(Support WIFI/Bluetooth/3G/4G Optional, embedded SIM slot)
I/O	1HDMI, 2COM (COMI & COM2 support RS232/RS422/RS485, 6 COM Optional), 1Power Switch 12 Pin power supply phoenix connector, 1Audio (Support Mic and Speaker at the same time), 4USB3.0, 2Intel 1000M LAN (4LAN Optional)
Other Function	TPM2.0 security encryption, Auto power on when there is electricity, Timing boo, Wake on LA, PXE boot, Watchdog (0~255 level)(Standard version doesn't set these function)
Expansion Function	GPIO (8 Input 8 Output), 2LA, 4COM, *USB2.0 (Standard version doesn't include these ports)
LCD	Size: 17 inch TFT-LCD; Brightness: 250 cd/m2; Viewing Angle: Full Angle Ratio: 4:3; Resolution: 1280* 1024
Touch Screen	Industrial grade multi-touch resistance touch screen, Life Time: more than 50000 Thousand Times
Speaker	Two 8-ohm 2-watt speaker
Input Voltage	DC 9V ~ 36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Work Temperature	0°C~+50°C (Commercial), -20°C~+60°C (Industrial SSD), Surface air flow
Work Humidity	5%~95% non-condensing
Dimension	408.534661 mm
Embedded Installation	389 * 321mm
Weight	4.7 kg
Application	Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision, etc

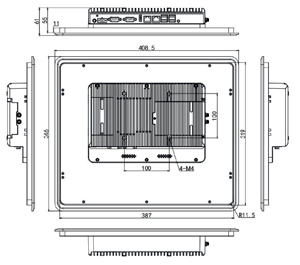

Mechanical Drawing

ACCESSORY LIST

Name	Quantity	Specification
Power Adapter	1	12V5A
Power Cord	1	Any Plug Optional (China, US, EU, UK, etc.)
Embedded Mounting Clip	4	For Standard Embedded Installation

ORDER INFORMATION

Configuration 1	Intel Celeron 4205U	Standard Port
Configuration 2 A116	Intel Core i5-265U	Standard Port
Configuration 3	Intel Core i7-8565U	Standard Port
Remark: There is conflict between the expansion function ports fixed position and the standard version ports fixed position, so if you need some expansion function ports, please check wth us first.

Military Grade Rugged 24" Display

Contact Us

Download Brochure

Unleash the Power of Rugged Visualization

TIntroducing Rug-Rel Rugged LCD panel Displays, specifically designed for extreme working conditions. These displays are built to withstand harsh environments, featuring improved shock and vibration safeguards (MIL-STD-810G) and electromagnetic interference protection (MIL-STD-461E).

Our 24" Panel Mount LCD monitor offers a high-resolution display, perfect for integration into Cabinets, Consoles, Kiosks, and various Industrial/Military applications. It comes standard with an environmentally IP65 front and rear panel, providing resistance against dust, dirt, and liquid splashes. The rugged RM-0313-226 LCD is available with either a capacitive or a resistive touchscreen option.

Key Features

1920 x 1080 Resolution, 450 Nits
MIL-STD 810G& MIL-STD 461E Compliant
IP65 Front & Rear
Rack mounts mechanical design, supports VESA mount
Military-Grade Power Connector (MIL-DTL-38999)
Input Power AC 230VAC±10%, (Optional 12 to 36VDC)
Convenient On-Screen Display Controls

Specifications

Display	Type	LCD, Full HD
	Resolution	1920x1080
	Contrast Ratio	5000:1
	Display color	16.7MColors
	Size	24 Inches
	Panel Brightness	450 Nits
	View Angle	-89 ~ 89 (H); -89 ~ 89 (V)
	Active Area	531.36(W) ×298.89(H)mm
Environment	Operating Temperature	-20°C ~ 70°C
	Operating Humidity	5% to 95% RH
	Storage Temperature	-30°C ~ 80°C
Compliance	Environmental Conditions	MIL-STD 810F/G
Compliance	EMI/EMC	MIL-STD-461E/F
I/O Ports	Video	1 x HDMI (D38999 Connector)
	Power	1x 230VAC (D38999 Series Connector)
	Touch	1 x USB (D38999 connector)
Mechanical	Dimension	647(W) × 395 (H) x 55.5 (D) mm
	Mounting Type	Rack Mount / VESA Mount
	Enclosure	Metal Housing with Aluminum Bezel
	Cooling System	Fan less Design
Control	Buttons 5 Key	Power, Decrease, Increase, Exit/ Auto, Menu
Control	Accessories	1 x Power Cord MIL-DTL-38999 1 x HDMI Cable MIL-DTL-38999 1 x USB Cable MIL-DTL-38999

DISPLAY	Resolution	1024 X 786	Size	15 Inches
	Contrast Ratio	2500:1	Panel Brightness	2200 nits
	Display Color	262K/16.2M Colors	View Angles	88,88,88,88
	Active Area	304.128 (W) x 228.096 (H) mm
ENVIRONMENT	Operating Humidity	10% to 95% RH	Operating Temperature	-30 Degree C - 60 Degree C
	Storage Temperature	-40 Degree C ~ 70 Degree C
COMPLIANCE	EMI/EMC	MIL-STD-461E/F	Environmental Conditions	MIL-STD 810F/G
CERTIFICATION	Certification	CE, FCC
IO PORTS	Video	1 X HDMI (D38999 Series Connector) 1X DP (D38999 Series Connector)	Power	1 X 230VAC (D38999 Series Connector) Optional DC 9 ~ 36V, ± 10%
MECHANICAL	Dimension	mm	Mounting	Rack Mount/VESA Mount
	Enclosure	Metal Housing with Aluminium Bezel	Cooling System	Fanless Design
	Accessory	1 X Power Cord MIL-DTL-38999/1 \| 1X HDMI Cabel MIL-DTL-38999 \| 1X DP Cable MIL-DTL-38999
POWER	Power Rating	230VAC Optional DC 9 ~ 36V, ± 10%
CONTROL	Button	5 Key: Power, Decrease, Increase, Exit/Auto, Menu

Rugged Display

Model: RM-0313-15

Features

Specifications

Rug-Rel 7 Inch Rugged Panel PC

INTRODUCTION & KEY FEATURES

Specifications

Rug-Rel A600 17"Fanless Resistance Touch Pad

Features

SPECIFICATIONS

Mechanical Drawing

ACCESSORY LIST

ORDER INFORMATION

Military Grade Rugged 24" Display

Unleash the Power of Rugged Visualization

Key Features

Specifications

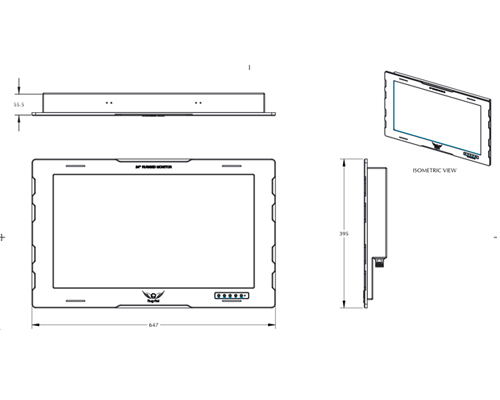

Dimensions
