Chassis & Enclosures

Rugged steel and aluminum built Chassis to survive extreme environmental conditions compliant to MIL standards

Standard Chassis

1U Compact PCI / VME64x Chassis
For Enquiry Contact Us

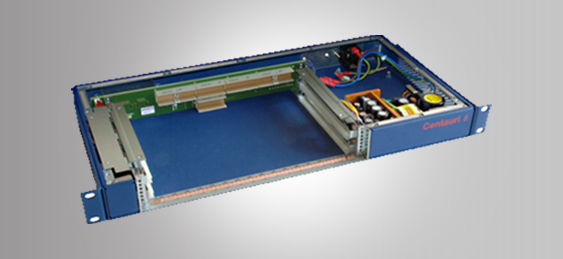

1U Compact PCI / VME64x Chassis

  Designed for use in either 19” rackmount or desktop applications, the chassis is ideal for housing either VME64x or      CompactPCI cards.
  The chassis is available with either a CompactPCI or VME64 extensions backplane. The CPCI option is a 6U, 2 slot, 64      bit,PICMG2.0 R3.0 compliant backplane & The VME64x version is a 2 slot ANSI/VITA 1.1 – 1997 compliant backplane.

Features :

1U Chassis

  Rackmount or Desktop operation (removable rack ears).
  Removable top cover

IEEE 1101.10/11 Heavy Duty Cardframe

  1U x 24HP x 160mm Front area .
  1U x 24HP x 80mm Rear transition area

6U, 2 Slot Backplane (VME64x or CompactPCI)

  ANSI/VITA 1.1-1997 VME Extensions B/P.
  PICMG 2.0 Revision 3.0 CPCI B/P.

250W Embedded ATX Power Supply

  Autoranging 110 – 240VAC input.
  Active Power Factor Correction.
  110W @+5V & 3.3V combined.
  Front mounted On/Off switch.

Optimized fan cooling

  Six low-noise DC fans.
  22 CFM Total chassis airflow.

Specifications :

Dimensions

  Width 440mm / 17.33” desktop, 482.6mm / 19” with rackmount ears
  Depth 296mm / 11.65”
  Height 1U / 44.45mm / 1.75”

Weight

  4.47 Kg / 9.86 lbs

Material & Finish

  Outer - Steel (Powder coated in black – textured finish)
  EMC Gasket – Beryllium / Copper
  Subrack - Aluminium alloy (Iridite NCP)

Environmental

  Operating Temperature 00 C to +500 C.
  Storage Temperature -200 C to +800 C.
  Storage Temperature -200 C to +800 C.

Power Supply

  Input 110 to 240V @ 50-60 Hz
  Output +5V @ 17A* , +3.3V @ 14A* , +12V @ 3A , -12V @ 0.8A *
  Total combined power 110W

2U Compact PCI / VME64x Chassis
For Enquiry Contact Us

2U Compact PCI / VME64x Chassis

  The H24 chassis is designed as a 2U x 19” x 300mm deep rackmount or desktop Ideal for both CPCI and VME64x      applications.
  The chassis is available with a range of backplane options. The CPCI options include a 6U, 4 slot, 64 bit, PICMG2.0 R3.0      compliant backplane & The VME64x version is a 6 slot ANSI/VITA 1.1 – 1997 compliant backplane.

Features :

2U Chassis

  Rackmount or Desktop operation (removable rack ears).
  Removable top cover n.

IEEE 1101.10/11 Heavy Duty Cardframe - KM6-HD Series’

  6U x 16HP x 160mm Front area.
  6U x 16HP x 80mm Rear transition area.

6U, 4 Slot Backplane (VME64x or CompactPCI)

  ANSI/VITA 1.1-1997 VME Extensions B/P .
  PICMG 2.0 Revision 3.0 CPCI B/P
       Optional CT/H.110 Bus (PICMG 2.5)
        PICMG 2.16 Packet Switching B/P

Wide range of PSU options

  250W embedded ATX style.
  Single or dual pluggable supplies.
  AC or DC input options.
  Hot swap / redundancy capability.

Optimized fan cooling

  3 x low-noise ball bearing DC fans.
  Fixed or hot swappable, front loading cassette.
  Optional filtering.
  Optional fan fail indication / monitoring.

Provision for mounting 3.5” drive peripherals

Specifications :

Dimensions

  Width 440mm / 17.33” desktop 482.6mm / 19” with rackmount ears.
  Depth 296mm / 11.65”
  Height 2U / 88.14mm / 3.57”

Weight

  6 Kg / 13.3 lbs (Typical, chassis + backplane + single PSU)

Material & Finish

  Outer - Steel (Powder coated in black – textured finish)
  EMC Gasket – Beryllium / Copper
  Subrack - Aluminium alloy (Iridite NCP)

Environmental

  Operating Temperature -50 C to +550 C (PSU de-rating above).
  Storage Temperature -100 C to +700 C.

Power Supply

Embedded Pluggable 200W(each) Pluggable 300W(each)
AC Input 110 to 240V @ 50-60Hz 90 - 24V @ 50-60Hz 90 - 264V @ 50-60Hz
DC Input 36 - 72V DC 36 - 72V DC 36 - 72V DC
Output +5V @ 17A +5V @ 25A +5V @ 30A
+3.3V @ 14A +3.3V @ 36A +3.3V @ 40A
+12V @ 3A +12V @ 5A +12V @ 5A
-12V @ 0.8A -12V @ 0.5A -12V @ 1A

3U Compact PCI / VME64x Chassis
For Enquiry Contact Us

3U Compact PCI / VME64x Chassis

  Chassis is designed as a 3U x 19” x 300mm deep rackmount or desktop enclosure.
  The chassis is available with a range of backplane options, covering both CPCI and VME64x architectures. The CPCI       options include a 6U, 6 slot, 64 bit, PICMG2.0 R3.0 compliant backplaneThe VME64x version is a 6 slot ANSI/VITA 1.1 –       1997 compliant backplane.

Features :

3U Chassis

  Rackmount or Desktop operation (removable rack ears).
  Removable top cover.

IEEE 1101.10/11 Heavy Duty Cardframe - KM6-HD Series’

  6U x 24HP x 160mm Front area.
  6U x 24HP x 80mm Rear transition area.

6U, 6 Slot Backplane (VME64x or CompactPCI)

  ANSI/VITA 1.1-1997 VME Extensions B/P.
  PICMG 2.0 Revision 3.0 CPCI B/P.
  Optional CT/H.110 Bus (PICMG 2.5).
  PICMG 2.16 Packet Switching B/P.

Wide range of PSU options

  250W embedded ATX style.
  Single or dual pluggable supplies.
  AC or DC input options .
  Hot swap / redundancy capability.

Optimized fan cooling

  2 x low-noise ball bearing DC fans.
  Fixed or hot swappable, front loading cassette.
  Optional filtering.
  Optional fan fail indication / monitoring.

Provision for mounting 3.5” drive peripherals

Specifications :

Dimensions

  Width 440mm / 17.33” desktop or 482.6mm / 19” with rackmount ears.
  Depth 296mm / 11.65”
  Height 3U / 132.50mm / 5.22”

Weight

  7.0 Kg / 15.4 lbs (Typical, chassis + backplane + single PSU)

Material & Finish

  Outer - Steel (Powder coated in black – textured finish)
  EMC Gasket – Beryllium / Copper
  Subrack - Aluminium alloy (Iridite NCP)

Environmental

  Operating Temperature -50 C to +550 C (PSU de-rating above).
  Storage Temperature -100 C to +700 C.

Power Supply

Embedded Pluggable 200W(each) Pluggable 300W(each)
AC Input 110 to 240V @ 50-60Hz 90 - 264V @ 50-60Hz 90 - 264V @ 50-60Hz
DC Input 36 - 72V DC 36 - 72V DC 36 - 72V DC
Output +5V @ 17A +5V @ 25A +5V @ 30A
+3.3V @ 14A +3.3V @ 36A +3.3V @ 40A
+12V @ 3A +12V @ 5A +12V @ 5A
-12V @ 0.8A -12V @ 0.5A -12V @ 1A

 Desktop 10 slot (Half-width) System
For Enquiry Contact Us

Desktop 10 slot (Half-width) System

  Designed as a 9U, half width x 422mm deep desktop enclosure, the D10 chassis offers up to 10 vertically mounted 6U x      160mm CPCI or VME64x slots with space to the rear of the backplane for I/O connection.
  The chassis is available with a range of backplane options, covering both CPCI and VME64x architectures. The CPCI      options include 6U, 6 and 8 slot, 64 bit, PICMG 2.0 R3.0 compliant & The VME64x version is a 10 slot ANSI/VITA 1.1 –      1997 compliant.

Features :

Chassis

  Diplomat desktop enclosure.
  6U, half width x 422mm.
  Front tilt feet standard.

IEEE 1101.10/11 Cardframe

  6U x 40HP x 160mm Front area.
  Full height access to the rear of the backplane for I/O connection.

6U, 6 Slot Backplane (VME64x or CompactPCI)

  ANSI/VITA 1.1-1997 VME Extensions B/P.
  PICMG 2.0 Revision 3.0 CPCI B/P.
  Optional CT/H.110 Bus (PICMG 2.5).
  PICMG 2.16 Packet Switching B/P.

Backplane

  10-slot 6U, VME64x.
  6 or 8 slot PICMG 2.0 Rev 3.0 CPCI.
  CPCI Selectable coded I/O voltage – default =5V’.

Cooling

  Two fans 120mm x 120mm x 32mm, 120 CFM.
  Dual ball bearing – long life.

Power Supply

  Autoranging 110/240 VAC, 50/60 Hz.
  Embedded 700W rear panel.
  PICMG 2.11 compatible 500W (pluggable P47 connector).

Specifications :

Dimensions

  Width 313.63mm / 12.35”
  Depth 422.00mm / 16.6”
  Height 445.76mm / 17.55”

Material & Finish

  Diplomat chassis - Steel (Textured electrostatic epoxy finish)
  Top, bottom, rear & side infill covers – Light Grey BS 4800 00A01
  All other parts – Mid Grey BS4800 00A05
  KM6-RF Subrack - Aluminium alloy (Iridite NCP)
  Front infill – Aluminium alloy (Anodised)

Environmental

  Operating Temperature 00 C to +500 C.
  Storage Temperature -200 C to +800 C.

Power Supply

Pluggable 500W(each) Embedded 700W
AC Input 90 - 264V @ 47-63Hz 90 - 264V @ 47-63Hz
Output +5V @ 65A +5V @ 60A
+3.3V @ 80A +3.3V @ 60A
+12V @ 12A +12V @ 10A
-12V @ 1.5A -12V @ 8A

   Desktop 21 slot (Full Width) System
For Enquiry Contact Us

Desktop 21 slot (Full Width) System

  Offered as a 9U, full width desktop system accepts up to 21 vertically mounted 6U x 160mm CPCI or VME64x slots and      with an 80mm deep.
  The chassis shown is fitted with a 10 slot VME64x backplane; however other widths of VME64x or CPCI backplanes      may be selected. WE offer a comprehensive range of architectures covering VME, VME64x, CompactPCI, PXI, VXS, VXI      and VPX – please contact your sales office if you have a special requirement.

Features :

Chassis

  Up to 21 slots on 4HP of 6U vertical cards.
  9U, 19” full width x 426mm.
  Recessed card cage for cable management.
  Hinged front blank panel optional.
  Hinged drop down access panel on rear.

IEEE 1101.10/11 Cardframe

  6U x 160mm Front card area.
  6U x 80mm rear transition area.

Backplane

  1 to 21 slots .
  CPCI or VME64x backplanes.
  Other backplane options available.

Cooling

  Three DC fans 120mm x 120mm, each rated at 120 CFM.
  Removable air inlet filter.
  Internal PSU fan for embedded supplies.

Power Supply

  Autoranging 90-264VAC 50-60 Hz.
  Choice of PSU format.
       1 or 2 x Modular 500w CPCI 2.11 front pluggable
       700 or 1000w embedded

Front Panel Hardware

  LED indicators for backplane voltage and fan operation.
  Reset & Power Enable switches.

Specifications :

Dimensions

  Width 530mm / 20.87”
  Depth 552mm / 20.55”
  Height 445.28mm / 17.53”

Material & Finish

  Diplomat chassis - Steel (Textured electrostatic epoxy finish)
  Top, bottom, rear & side infill covers – Light Grey BS 4800 00A01
  All other parts – Mid Grey BS4800 00A05
  Chassis - Aluminium alloy (Iridite NCP)
  KM6-II Subrack - Aluminium alloy (Iridite NCP)
  Front infill – Aluminium alloy (Anodised)

Environmental

  Operating Temperature 00 C to +500 C.
  Storage Temperature -200 C to +800 C.

Power Supply

Pluggable 500W(each) Embedded 700W Embedded 1000W
AC Input 90 - 264V @ 50-60Hz 90 - 264V @ 50-60Hz 90 - 264V @ 50-60Hz
Output +5V @ 65A +5V @ 60A +5V @ 120A
+3.3V @ 80A +3.3V @ 60A +3.3V @ 60A
+12V @ 12A +12V @ 10A +12V @ 10A
-12V @ 1.5A -12V @ 8A -12V @ 8A

 4U Rackmount – 21 slot System
For Enquiry Contact Us

4U Rackmount – 21 slot System

  wide range of backplanes – this is ideal for CPCI applications or VME J1 backplanes. The standard CPCI offerings are      three widths of backplane, covering 4, 6, or 8 slots. These are available either as the 32bit backplane with rear I/O pins,      or for the fully bussed 64bit - please contact your sales office if you have a special requirement.

Features :

Chassis

  Up to 21 slots on 4HP of 3U vertical cards.
  4U, 19” full width x 309mm rear depth .
  Accepts 2.5” HDD Caddy.

IEEE 1101.10/11 Cardframe

  3U x 160mm Front card area.
  Front panel coding & pre-location.
  Inject/eject capability.

Backplane

  1 to 21 slots equivalent.
  CPCI Backplanes.
       32 bit with rear I/O connectors.
       64 bit bussed.
       Default VI/O set at 5v (reconfigurable).

Cooling

  Three low-profile 86CFM DC fans 120mm x 120mm.
  Dual ball bearing – long life.

Wide range of PSU options

  Autoranging 90-264VAC 50-60 Hz.
  Single or dual pluggable supplies.
  AC or DC input options.
  Hot swap / redundancy capability.
  Switched, fused & filtered IEC inlet.

Specifications :

Dimensions

  Width 482.60mm / 19”
  Depth 309.1mm / 12.2”
  Height 176.95 mm / 6.96” (4U)

Material & Finish

  Chassis - Aluminium alloy (Iridite NCP)
  KM6-II Subrack - Aluminium alloy (Iridite NCP)
  Front & rear infill – Aluminium alloy (Anodised)

Environmental

  Operating Temperature 00 C to +500 C.
  Storage Temperature -200 C to +800 C.

Power Supply

Pluggable 200W(each) Pluggable 300W(each)
AC Input 90 - 264V @ 50-60Hz 90 - 264V @ 50-60Hz
DC Input +18V @ 36V DC +5V @ 36V DC
Output +5V @ 25A +5V @ 30A
+3.3V @ 36A +3.3V @ 40A
+12V @ 5A +12V @ 5A
-12V @ 0.5A -12V @ 1A

 8U Rackmount – 21 slot System
For Enquiry Contact Us

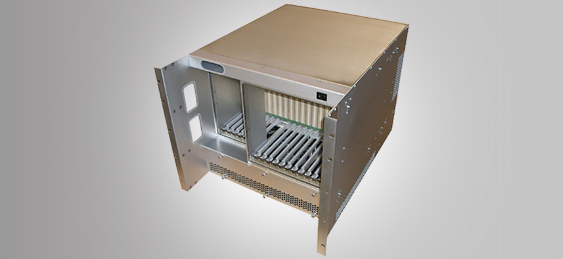

8U Rackmount – 21 slot System

  For rackmount applications that need to accommodate up to the maximum 21 slots of 6U x 4HP card space available      within the 19” rack format, This chassis provides an ideal solution in a compact 8U enclosure.

Features :

Chassis

  Up to 21 slots on 4HP of 6U vertical cards
  8U, 19” full width x 426mm.
  Hinged drop down access panels front and rear.

IEC 60297-3 Cardframe

  6U x 160mm Front card area.

Backplane

  5 to 21 slots – with Auto Bus Grant connectors & On-board termination.
  6U J1/J2 VME (ANSI/IEEE Std 1014-1987).

Cooling

  Three DC fans 120mm x 120mm, each rated at 120 CFM.
  Dual ball bearing – long life.
  Internal PSU fan for embedded supplies.
  Removable, filtered air inlet.

Power Supply

  Autoranging 90-264VAC 50-60 Hz.
  700 or 1000w embedded, mounted on rear panel.

Front Panel Hardware

  LED indicators for backplane voltage and fan operation.
  Reset & Power Enable switches.
  ESD wrist strap point.

Specifications :

Dimensions

  Width 482.22mm / 19”
  Depth 426.3mm / 16.8”
  Height 354.75mm / 13.96” (8U)

Material & Finish

  Chassis - Aluminium alloy (Anodised)
  KM6-II Subrack - Aluminium alloy (Iridite NCP)
  Front & rear infill – Aluminium alloy (Anodised)

Environmental

  Operating Temperature 00 C to +500 C.
  Storage Temperature -200 C to +800 C.

Power Supply

Embedded 750W Embedded 1000W
AC Input 90 - 264V @ 50-60Hz 90 - 264V @ 50-60Hz
Output 750W 1000W
+5V @ 120A 150A
+12V @ 12/200A pk 20/30A pk
-12V @ 10A -10A
+12V @ 5A 10A

 9U Rackmount – 21 slot System
For Enquiry Contact Us

9U Rackmount – 21 slot System

  chassis may be used either in rackmount applications, or alternatively as a stand-alone unit in the Diplomat enclosure. Offering the full width 19” chassis allows for the full 21 slots of 4HP cards, typically in VME64x or CPCI architecture systems.
   The chassis shown is fitted with a 10 slot VME64x backplane; however other widths of VME64x or CPCI backplanes may be selected. Verotec offer a comprehensive range of architectures covering VME, VME64x, CompactPCI, PXI, VXS, VXI and VPX – please contact your sales office if you have a special requirement.

Features :

Chassis

  Up to 21 slots on 4HP of 6U vertical cards.
  9U, 19” full width x 426mm.
  Recessed card cage for cable management.
  Front close-off available .
  Hinged drop down access panel on rear.

IEEE 1101.10/11 Cardframe

  6U x 160mm Front card area.
  6U x 80mm rear transition area.

Backplane

  1 to 21 slots.
  CPCI or VME64x backplanes.
  Other backplane options available.

Cooling

  Three DC fans 120mm x 120mm, each rated at 120 CFM.
  Removable air inlet filter.
  Internal PSU fan for embedded supplies.

Power Supply

  Autoranging 90-264VAC 50-60 Hz.
  Choice of PSU format .
       1 or 2 x Modular 500w CPCI 2.11 front pluggable.
       700 or 1000w embedded.

Front Panel Hardware

  LED indicators for backplane voltage and fan operation.
  Reset & Power Enable switches.
  ESD wrist strap point.

Specifications :

Dimensions

  Width 482.22mm / 19”
  Depth 488mm / 19.2”
  Height 399.2mm / 15.7”

Material & Finish

  Chassis - Aluminium alloy (Iridite NCP)
  KM6-II Subrack - Aluminium alloy (Iridite NCP)
  Front & rear infill – Aluminium alloy (Anodised)

Environmental

  Operating Temperature 00 C to +500 C.
  Storage Temperature -200 C to +800 C.

 12U Rackmount – 21 slot System
For Enquiry Contact Us

12U Rackmount – 21 slot System

  Designed for demanding top-end applications,12U System supports the full 21 slots available in the 19” rackmount      capability.
  The chassis shown is fitted with a 21 slot VME64x backplane, however other widths of VME64x or CPCI backplanes      may be selected. We offer a comprehensive range of architectures covering VME, VME64x, CompactPCI, PXI, VXS, VXI      and VPX – please contact your sales office if you have a special requirement.

Features :

Chassis

  Up to 21 slots on 4HP of 6U vertical cards.
  12U, 19” full width x 553mm.
  Hinged drop down access panels front and rear.

IEEE 1101.10/11 Cardframe

  6U x 160mm Front card area.
  Recessed card cage – front cable management.

Backplane

  5 to 21 slots .
  CPCI or VME64x backplanes.
  CPCI Backplanes – Selectable coded I/O voltage (default = 5V).

Cooling

  Six DC fans 120mm x 120mm, each rated at 120 CFM.
  Dual ball bearing – long life.
  Hinged air inlet with removable filter.
  Internal PSU fan for embedded supplies.

Power Supply

  Autoranging 90-264VAC 50-60 Hz.
  Choice of PSU format .
       1 or 2 x Modular 500W CPCI front pluggable.
       700 or 1000W embedded, mounted on rear panel.

Front Panel Hardware

  LED indicators for backplane voltage and fan operation.
  Reset & Power Enable switches.
  ESD wrist strap point.

Specifications :

Dimensions

  Width 482.22mm / 19”
  Depth 552.9mm / 21.77”
  Height 532.55mm / 20.97” (12U)

Material & Finish

  Chassis - Aluminium alloy (Iridite NCP)
  KM6-RF Subrack - Aluminium alloy (Iridite NCP)
  Front & rear infill - Aluminium alloy (Anodised)

Environmental

  Operating Temperature 00 C to +500 C.
  Storage Temperature -200 C to +800 C.

Power Supply

Pluggable 200w(each) Embedded 700W Embedded 1000W
AC Input 90 - 264V @ 50-60Hz 90 - 264V @ 50-60Hz 90 - 264V @ 50-60Hz
Output +5V @ 65A +5V @ 60A +5V @ 120A
+3.3V @ 80A +3.3V @ 60A +3.3V @ 60A
+12V @ 12A +12V @ 10A +12V @ 10A
-12V @ 1.5A -12V @ 8A -12V @ 8A

 6U Rackmount – 21 slot System
For Enquiry Contact Us

6U 19” Rackmount ATCA Chassis

  ATCA stands for “Advanced Telecommunications Computing Architecture”.
  The A6R chassis is a 6U, 6 slot, 19” rack mounting ATCA shelf that is powerful and highly configurable, making it      suitable for both development and deployed applications. It’s versatile and scalable design in terms of system      management, cooling, power and backplane topology means it can be used for anything from a simple laboratory /      test unit to a high-availability / mission critical system.

Features :

  Fully PICMG 3.0 Revision 2 compatible.
  6U high, 19” Rack-mounting chassis.
  6 slot ATCA front card area.
  6 slot ATCA rear transition module slots.
  40Gbps capable monolithic backplane design.
  Triple replicated Full Mesh or Dual Star backplane topology options Power distribution for 300W+ per slot.
  Provision for 4 x 850W AC-to-DC power supplies.
  Power supply redundancy:
       2N and N+1 (with additional bridge board) for full mesh backplane n.
       N+1 for dual star backplane.
  Cooling capability 300W for front boards and 35W for RTM.
  Four cooling zones: 2 front and 2 rear.
  Two high pressure fan tray units, hot swappable, front pluggable.
  Air filter mounted on fan tray unit, front pluggable.
  Dual redundant Shelf FRU Data EEPROMs on the backplane.
  Dual redundant IPMB (bussed topology).
  Provision for dual redundant shelf manager boards.
  Pigeon Point SHMM500 shelf manager control.
  RS232 and Ethernet control interfaces.
  Front carry handle & rear cable tidy for easy install.
  ESD wrist strap point front and rear.
  UL listed & designed to meet NEBS.

Specifications :

Dimensions

  Height = 265.9mm (10.47”)
  Width = 482.6mm (19”)
  Depth = 423.45mm (16.67”) from 19” panel mounts to rear cable tray, 42.7mm (1.68”) from 19” panel mounts to front      handle

Weight

  23KG (50.7lbs) (typical, 1 x power supply fitted)

Material & Finish

  Outer = Steel (Powder coated in black – textured finish)
  Subrack = Steel (Zinc plated)

Environmental

  Operating Temperature = 0deg.C to +50deg.C.
  Storage Temperature = -20deg.C to +80deg.C.
  Cooling = 300W for front boards and 35W for RTM (dependant on ambient temperature)

Power Supply

  Input = 90-264VAC, 47-63Hz
  Output = -48V@17A
  Active PFC = 0.99
  EMI filter EN55022 Class B, FCC Part 15

Customized Chassis

Our design expertise in the area of Chassis and best in class facilities enables us in manufacturing broad range of customized products, providing great flexibility in the design of custom chassis. The chassis are carefully crafted & developed as per customer specifications.

Below are some of the Chassis custom developed for our prestigious Indian defense customers.

H12 Chassis

Customised H12 Chassis

Customised H12 chassis, painted blue with spe-cial backplane and high EMC - video streaming application.

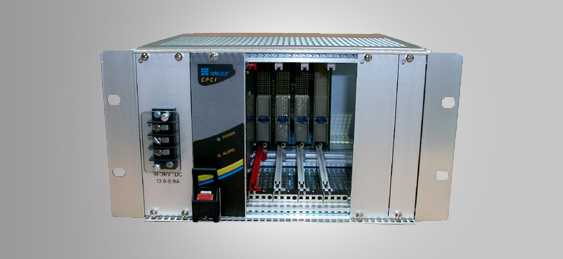

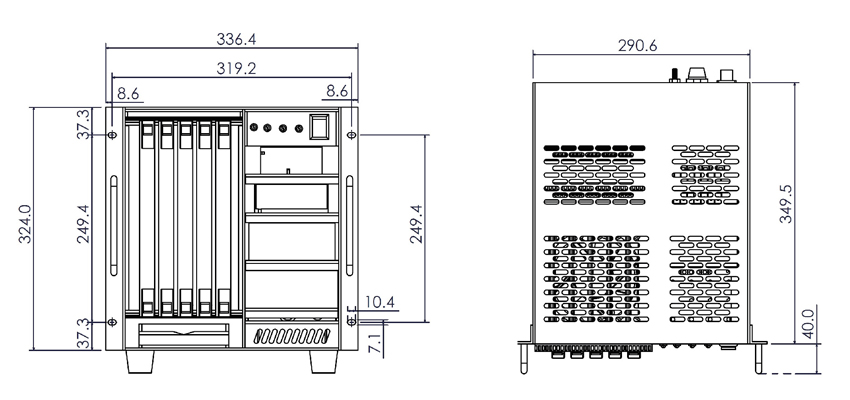

V4 CompactPCI

Customised V4 CompactPCI

Customised V4 CompactPCI half-width chassis with front DC input panel – industrial process control application.

V9 VME64x Chassis

Customised V9 VME64x Chassis

Customised V9 VME64x chassis, recessed with high airflow and 160/220mm split card cage – military application.

D10 VPX Chassis

Customised D10 VPX Chassis

Customised D10 VPX chassis with cooling plinth and rear DC input panel – digital signal process-ing application.

All Rights Reserved To Rug-Rel, Bangalore.
Site by Websmartindia
