Rugged Panel PC
Rug-Rel 0313-241-pc
For Enquiry Contact Us

Rug-Rel 0313-241-pc


  Supports Intel Celeron & Intel Atom Processor
  Very low power consumption
  Fanless Design
 Flat panel design with projected capacitive touch
  IP65 front panel waterproof protection
  Compact size
  Customised Offering
  Mil-grade waterproof circular connectors
  Able to operate in temperatures between -20°C - 55°C


Model No. 03103-101-PC
Max. Resolution 1280 x 800
Luminance (cd/m2) 850
Max. Color 16.7M
View Angle (H°/V°) 170/170
Backlight Lifetime(hrs) 50000
Touch Type Projected Capacitive
Touch Interface USB
I/O Interface USB 3.0 1
USB 2.0 3
RS-232/422/485 2 x RS-2322, 2x RS-232/422/485
LAN 2 (10/100/1000Mbps)
Power Connector 3 Pin Waterproof Circular Connector
Power Button Reset button
Mechanical Dimensions (mm) 130 * 220 * 47
Net Weight (kgs)
System Processor Intel Celeron J1900, 2 GHz (Quad-Core), 2.42 GHz, 2MB Cache *
Memory DDR3L 1333Mhz RAM 8GB*
Thermal Design Fanless
Expansion Slot Mini PCIe 1 x Full-size with SIM holder
Storage Space SSD 256GB*
Power Power Input Range 90VAC to 264VAC (OPTIONAL 9VDC TO 36VDC
Construction Chassis Material Aluminium
Color (Front/Back) Black
IP Rating IP65

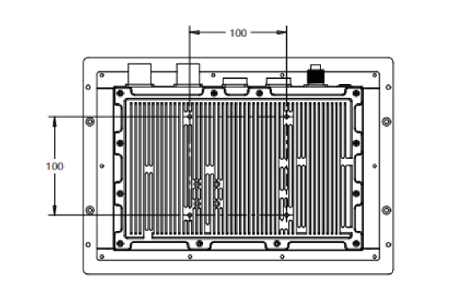

Mounting VESA 100x100 mm, Panel Mount
Environmental Operating Temperature -20° C ~ 60° C
Storage Temperature -40° C ~ 85° C
Supported Operating Systems Windows 10Pro, 8 32/64-bit, Windows 7 Pro for Embedded 64-bit, linux


For Enquiry Contact Us
Brochure rug-rel-7-inch-rugged-panel-pc rug-rel-7-inch-rugged-panel-pc rug-rel-7-inch-rugged-panel-pc

Rug-Rel 7 Inch Rugged Panel PC


The 7” Panel PC is a CE certified/IP65 proof front monitor solution, powered with an integrated State-of-the-Art em- bedded PC. Therefore, it is the perfect platform for highperformance visualiza- tion projects. Its robust but slim cover offers all options for integration and vari- ous applications. The PC is equipped with an industrial high-brightness display and is designed for long term availability.

  Solid structure, 15mm Aluminum Rugged Frame rack-mounted for industrial & military application.
  Easy mount touch screen (optional), tempered glass display surface box to avoid dust, waterproof, vibration resistant.
  Suitable for large electromagnetic interference and low power con- sumption of industrial one-site human-machine interface, outdoor use, process control and other applications.
 VGA input with cable length to 5M.
  Can use air interface, hard steel materials, the panels look elegant and generous.
 Low-E characteristics of LCD screen is not flashing, compared to the traditional CRT, can reduce the dim age to your eyes.


SYSTEM SPECS CPU Intel Celeron Quad Core J1900, 2.0GHz, Up to 2.3GHz (Optional)
Chipset SoC Integrated, Intel HD Graphics 620 48% to 52% 15W low TDP
Audio Built USB Audio Card
ROM 128GB, Upgradeable
OS Supported Win7/10, WinCE, XP, Linux, Ubuntu
POWER Input Power +24V +12V,+5V,+5V VSB, PS-ON
Power Consumption 35 watts (Typical)
I/Os Signal I/0 1x HDMI 4x USB 4x COM 2 x Gigabit LAN
Audio 1x Audio Output (Optional)
Rear Panel I/O 1x HDM Waterproof Connector 4x USB Waterproof Connector 4x RS232 1x DC D38999 Connector-3Pin
Aspect Ratio 16:10
Resolution 1024 x 600(WQXGA)
View Angle L/R: 89/89 , U/D: 89/89
Luminance 800 nits
Contrast Ratio 1000:1 (min.)
Response Time TR6ms TF6ms
Colors 8Bits-true 16.7M colors
Video Format Support PAL/NTSC/ASCEM etc.
Horizontal Frequency 67.5KHZ
Vertical Frequency 1QQ
SYSTEM FEATURES Mounting Embedded Mount, Panel Mount, Rack Mount & VESA Mount
Material Aluminum Alloy
Weight 1.65 Kgs
Dimensions 150x226x4Imm (HxWxD)
Environmental Operating Temperature 30°C to +70°C
Storage Temperature -40°C to +80°C
Operating Humidity 5% to 95% (Non Condensing)
Ingress Protection IP65
Shock & Vibration MIL-STD-810G Compliant
EMI/EMC MIL-STD-461F Compliant
Altitude 6,000 meters
Fire Resistance UL-94HB
Chemical Resistance Active area of touch is resistant for acetone (Optional), toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal, oil and vinegar

For Enquiry Contact Us


PPC-0313-065-F is based on the development and design of Intel i5 6th generation CPU architecture platform, equipped with Intel Core i5 6360U generation. Fully enclosed cast aluminum shell, strong heat dissipation ability, anti-electromagnetic interference ability. Perfectly applicable Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields


Items PPC-0313-065-F
Motherboard Configuration Intel Core i5 6360U (Dual core quad threads,2.0 Ghz,Maximum Turbo 3.1 GHz)
Memory 8 GB Ram
Storage 512 GB SSD
Interface WiFi,3/4G module 802.11b/g/n(optional),Support 3g/4g (optional),2.4G+BT (Optional)
HDMI 1*HDMI output
USB 2*USB 2.0, 2*USB 3.0
Com 2xCOM(COM2 RS232/RS485)
Audio output 1*3.5mm audio
Display Size(inch) 15 inch
Screen type LCD screen with LED backlight
Resolution 1024*768
Brightness 250cd/㎡
Screen ratio 4:3
Structure Front and back cover Aluminum
Craft Glass frame paste, aluminum die casting
Color Black or Grey
Heat dissipation Fan-less, aluminum fin heat dissipation
Panel indicator light Power state, hard disk state
Whole size(mm) 339 * 264
Touch screen Touch point Multi touch Capacitive
Response time Morethan 5000 times
Working environment The surface is coated with 1:1 PVC protective film
Others Storage environment -0℃~ 50℃;Humidity:5%~ 95%
Temperature -0℃~60℃ ; Humidity:5%~95%
Installation ways Embedded mount、Wall Mount
Power consumption User Manual,certificate of qualification,warranty card


Protection Level IP65



Standard VESA 100*100

Working Temparature 20 to 70°C

CE&FCC Certification


912 v input
