Rug-Rel produces wide range of heavy-duty & vibration-proof 19" electronic rack cases with the option for insulation and air conditioning units fitted along. Rug-Rel Rack Mount Cases are renowned as the toughest, smartest transport systems available for commercial, industrial and military shippers. Our innovative design process and rigorous testing methods continue to result in superior patented advancements that ensure your vital, sensitive and expensive electronics remain protected. Rug-Rel Rack Mount Cases can take repeated drops, blows and soakings while protecting your gear. When it comes to electronics, nothing protects better than a Rug-Rel Rack Mount Case.
Rug-Rel is well-known for its capabilities to customize the products as per the customers' requirements. With wide Range of sizes, available for the multiple options of the cases, we are positioned strongly to meet the critical specifications defined.
Our Expertise lies in supporting with the accessories of the flight & Equipment cases. Besides our strength to design & manufacture the customized Thermo Electric Cooling units & the necessary Embedded Hardware, firmware & software, positions us distinctively in the industry.

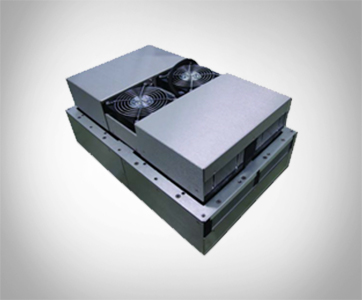

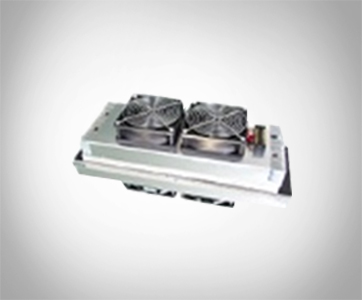

Thermoelectric assemblies are compact units that can control the temperature for a variety of applications. The cooling capacity of Rug-Rel thermoelectric assemblies can range from about 10W to 1000W. Destined to defence and industrial markets our TEC solutions can be designed and manufactured in different versions like: air to air, air to plate, air to liquid and liquid to liquid.
The related datasheet is available upon Request
Rug-Rel Offerings
Below are the illustrations which depict Rug-Rel offerings

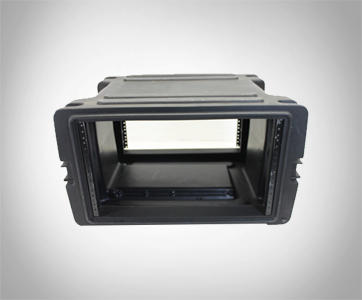

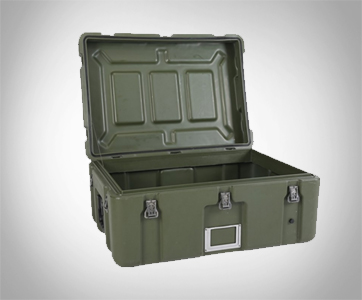

Rotomoulded enclosures

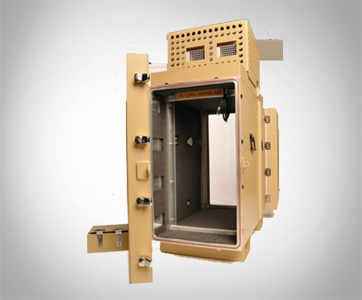

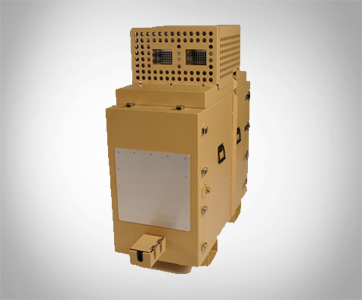

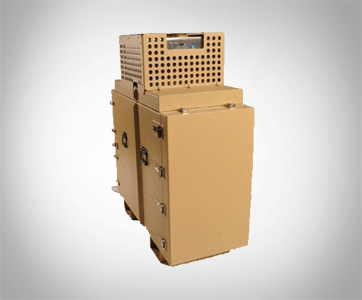

RFI shielded enclosures

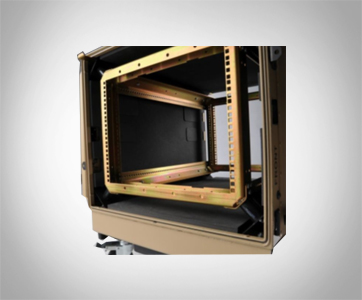

Shock Proof Enclosures

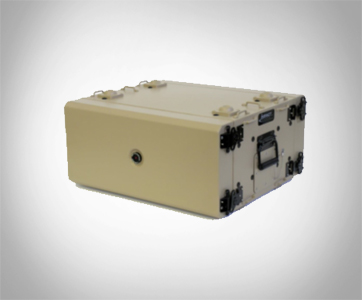

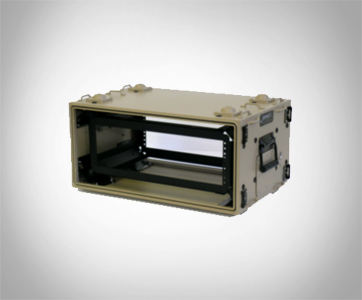

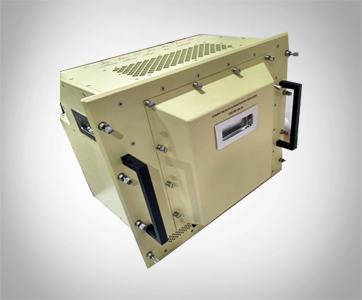

RFI shielded Rugged Enclosures

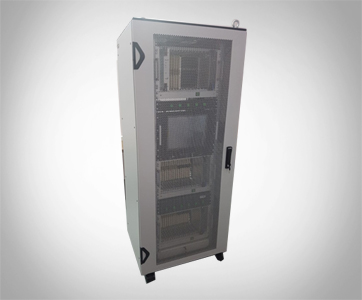

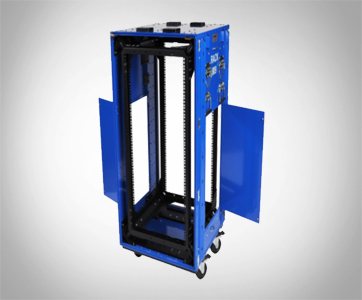

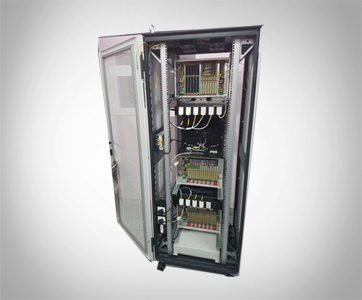

Rugged shock proof cabinets
Flight Case
Features:
ESD Safe
IP Protected (IP65)
Fire Retardant
Shock Proof
Vibration Proof
Powder Coating olive Green/olive Drab matt
Dimension: D 840+2mm (out side),w5582mm(inside).H 466+2 mm(inside)
Cover:Front & Rear(Removable)
Weight:23+1 KG
Compliant to MIL-STD-810Fand JSS-55555
Automatic Pressure relief valve (APV) For safety at high altitude
Humidity Indicator(incl reusable desiccant)
Drop Test:MIL STD 810G(Without Load)
Equipment Load Bearing capacity:50kg
19-inch chassis fitted inside the flight case for mounting the Equipment
Very light weight,usable height 8U,19-inch,compact,ruggedized,quick to deploy subsystem.
The Flight Case Will Have appropriate thermal insulator material below the outer envelope.This will ensure that the heat/coldness is not lost
Recessed, sprung handles and quick release lid latches will be provided for secure closure,removable front and rear access with locking Arrangement
Handle:4 NOS
Stainless Steel latch compressses silicone seal/Gasket to give an ingress Protection(IP65)
Inside Dimension:Height=466mm*width=588mm
Case Material-High tensile Aluminium Alloy,Material Thickness-1.5mm (min)
Connector Plate:1 NO,(size -350mm*160mm)(Fitted at top of flight case as per drg or suitable location with rubber gasket all around (W=15*TH.2MM)& should be removable type,material aluminium sheet,thickness 2mm. )
Chassis mounted on eight elastomeric mount.

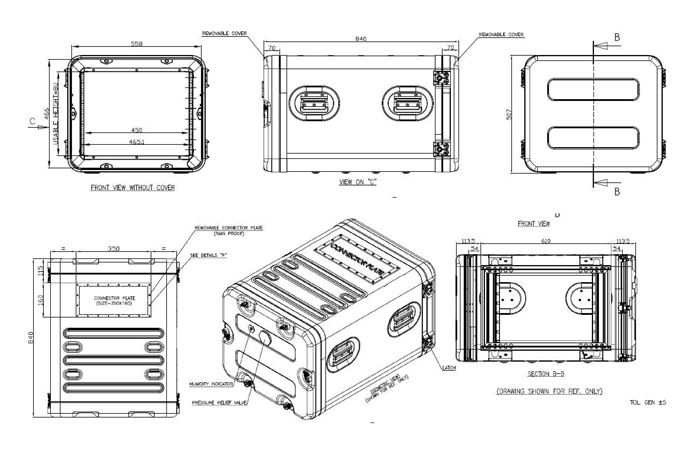

Dimensions:
Ordering Information:
| Part Number | Description |
|---|---|
| 0313-000-089 | Flight case with 19 inch rack for equipments |
