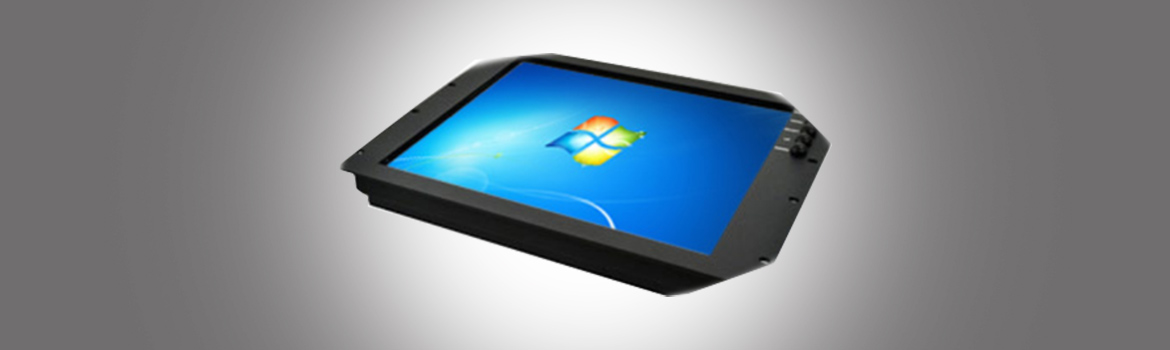

HI-REL Rugged Displays - 21.3” Mil-Grade Marine Display
Hi-Rel Rugged LCD flat panel Displays are most suitable for extreme working conditions. The displays are designed & manufactured to endure the challenges of harsh environment. They are built with improved shock and vibration safeguards as well as electromagnetic interference protection.
Rugged Cots series offers a range of rugged flat panel displays (LCDs) up to 47 inch diagonal, specifically designed to address the rugged COTS market. While all rugged COTS units are designed to withstand the harsh environments encountered on the battlefield, the feature rich product lie offers options for the specific application; including ground mobile, Airborwq2ne and Ship board (submarine and surface warship).
Specification :
Enclosure :
Rugged Chromated Corrosion Resistant Chassis (Material Type: HE-30 & S.S304)
STD Color: RAL 101 (Black)
Dimensions: 533.4mm (W) x 443.7mm (H) x 95.5mm (D)
TFT Features :
Screen Size : 21.3”
Active Display Area : (mm) 432.0 (H) x 320 (V)
Pixel Pitch (mm) : 0.270 (H) x 0.270 (V)
Display Resolution : 1600x1200 Pixels
Contrast Ratio : 900:1 (TYP)
Brightness : (CDIM^2) 300 (TYP)
Display Color : 16.7M Colors (8bits/color)
Viewing Angles : (CR > =10) 170 DEG/170
Recommended Resolution : 1600x1200 @60Hz
Signal Connector : 15 Pin D-Sub
Synchronization Range : Horizontal / Vertical 31.5~80.0Khz / 60~75Hz) DVI Input
Support Video Signal Type BNC-NTSC/PAL
Power Options :
Power Supply : AC 100~240V, Universal ±10%
Power Consumption : 60 W Typical, Normal Operation
Environmental Specifications :
Operating temperate : 0 C to 50 C
Storage temperature : -20C to 70 C
Shock : 30G, 11MS ½ Sine (Mounted on shock tray)
Vibration : As per MIL STD 810 F standard
Altitude Operating : 15,000 Ft
Altitude Non-Operating : 30,000 Ft
EMI/EMC : MIL 461E compliance
Front Panel : IP65 Sealed Front Panel
Safety : EN60950 / CE
Weight : 12-13 Kgs.Approx
Water proof OSD controller on front panel
Non-Reflective coating glass
Anti-Vandal display
SC-2310-Rugged 21.3 TFT LCD SCREEN
Specification :
LCD Module :
LCD Size : 21.3’’ Diagonal Active matrix TFT LCD
Resolution : 1600 x 1200
Contrast Ratio : 1400 : 1
Brightness : 800 cd/m2
Backlight : LED backlight
View Angle : 89 / 89 / 89 / 89
Touch Screen :
Touch Type : Resistive Touch
Resolution : 4096 x 4096
I/O Port :
VGA : 1 x Video port for analog VGA input (optional MIL-38999 Connector)
DVI : 1 x DVI-D port for digital DVI input (optional MIL-38999 Connector)
NTSC : 1 x NTSC, PAL RS170 input (BNC connector )
Touch : 1 x RS232 D-Sub 9pin connector for Touch interface
Power : 1 x MIL-38999 Connector
Location : At the back of the top side
Power Supply :
AC Input : AC Power Supply support 90~264V input or 12-36VDC
Power Consumption : Around 65 Watts
OSD :
OSD Location : At the back
OSD Button : On-Off, Menu, Up, Down, Auto
LED : LED indicator for power on-off
Mechanical :
Front Bezel : Rugged aluminum front bezel,
Chassis : Rugged steel construction with anti-corrosion treatment
I/O Location : At the back of the top side
Environmental :
Shock : 30g 11msMIL-STD-810E shock standard compliant
Vibration : MIL-STD-810E shock standard compliant
Operating Temperature : -10 to +60°C, MIL-STD-810E compliant
Storage Temperature : -30 to +85°C, MIL-STD-810E compliant
Humidity : 0~95% Relative Humidity at 45° C, non-condensing
